FNV AIR-COOLED CONDENSER SERIES
PARAMETER
Model
Nomimal
capacity
Kw
The
area
of
heat
transfer
m2
Volume
in
}tube
dm3
AIR COOLER
Connection
choose
to
use
the
compressor
powerPower
HP

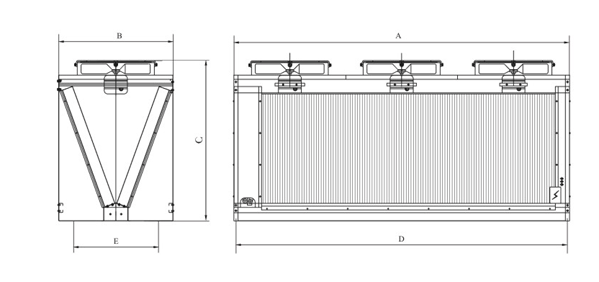

shape
size
installation
size
Power
W
Diameter
Φmm
Air
volume
m3/h
inlet
Φmm
outlet
Φmm
A
B
C
D
E
long
width
high
long
width
FNV-80
23.6
80
9.87
2×370
500
12600
28
22
10
1240
700
900
1210
480
FNV-100
29.4
100
12.34
2×370
500
12600
28
22
15
1440
700
900
1410
480
FNV-150
44.1
150
18.51
3×370
500
18600
28
22
20
1790
850
1150
1760
630
FNV-180
52.2
180
22.83
3×550
550
25200
28
22
25
2190
850
1185
2060
630
FNV-210
61.8
210
25.92
3×840
610
36000
32
28
30
2490
850
1185
2460
630
FNV-250
73.5
250
30.68
3×840
610
36000
32
28
35
2490
880
1260
2460
660
FNV-290
85.3
290
35.8
3×870
630
41100
32
28
40
2490
840
1160
2460
620
FNV-360
104.4
360
44.4
3×1850
760
58500
42
35
50
2490
920
1320
2460
700
FNV-430
124.7
430
53
3×2600
800
70500
42
35
60
2490
920
1380
2460
700
