FN(G)AIR-COOLED CONDENSER SERIES
PARAMETER
Model
Nomimal
capacity
(Kw)
The
area
of
heat transfer
Volume in tube
choose
to
use
the compressor
Power
HP
AIR COOLER
Connection
wreath row counts
s×w
shape size
installation size
Power
w
Diameter
Φmm
Air volume
m3/h
Volage
v
inlet
Φmm
outlet
Φmm

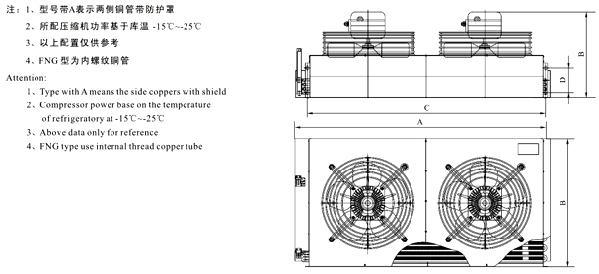

A×B×H(mm)
C
(mm)
D
(mm)
FN-2
0.6
2
0.28
1/4
40
200
410
220
10
10
2×4
320×100×230
270
65
FN-3.4
1.0
3.4
0.40
3/8
40
200
410
220
12
12
3×4
320×100×230
270
65
FN-4.4
1.3
4.4
0.55
1/2
60
250
750
220
12
12
3×5
370×100×280
325
65
FN-5.4
1.6
5.4
0.67
3/4
75
300
1350
220
12
12
3×6
440×100×330
392
65
FN-7.0
2.0
7.0
0.87
1
75
300
1350
220
12
12
4×6
440×135×330
390
90
FN-8.4
2.3
8.4
1.05
1.2
120
350
1700
220/380
16
12
3×8
500×130×430
455
95
FN-11.5
3.5
11.5
1.44
1.5
120
350
1700
220/380
16
12
4×8
480×180×430
430
145
FN-15
4.4
15
1.88
2
120
350
1700
220/380
16
12
4×9
550×180×480
490
145
FN-18
5.2
18
2.25
2.5
120
350
1700
220/380
19
16
4×10
590×180×530
530
140
FN-22
6.4
22
2.75
3
120
350
1700
380
19
16
5×10
590×180×530
530
140
FN-25
8.1
25
3.13
3.5
180
400
3000
380
19
16
4×11
750×180×680
660
150
FN-21
6.1
21
2.63
3
2×90
300
2700
380/220
16
12
3×8
840×180×430
790
140
FN-28
8.2
28
3.5
3.5
2×120
350
3400
380
19
16
4×8
900×180×430
840
145
FN-33
11.2
33
4.12
4
2×120
350
3400
380
19
16
5×9
900×200×480
840
130
FN-36
12.6
36
4.5
5
2×180
400
6000
380
22
19
4×11
1015×180×580
950
150
FN-43
14.8
43
5.38
6
2×180
400
6000
380
22
19
4×13
1015×180×680
950
150
FN-48A
17.5
48
6.00
6.5
2×180
400
6000
380
25
22
4×12
1250×200×630
1172
120
FN-55A
19.2
55
6.88
7.5
2×180
400
6000
380
22
19
4×14
1250×200×730
1172
120
FN-55
19.2
55
6.88
7.5
2×180
400
6000
380
22
19
4×14
1250×200×730
1172
140
FN-70A
20.5
70
8.75
10
4×120
400
6800
380
22
19
4×16
1250×200×830
1172
120
FN-80A
24.4
80
10.00
12
4×120
400
6800
380
25
22
4×18
1250×200×930
1172
120
FN-100A
29.6
100
12.5
13
4×180
400
12000
380
25
22
4×22
1250×200×1130
1172
120
FN-130A
38.2
130
16.25
15
4×180
400
12000
380
25
22
4×27
1250×200×1380
1172
120
FN-150
47.2
150
18.75
20
4×370
500
16000
380
25
22
5×25
1250×250×1330
1240
200
FN-180
58
180
22.5
25
4×370
500
16000
380
25
22
6×26
1250×270×1330
1240
200
FN-210
69.5
210
26.25
30
6×180
400
18000
380
32
25
6×24
1720×255×1230
1650
180
